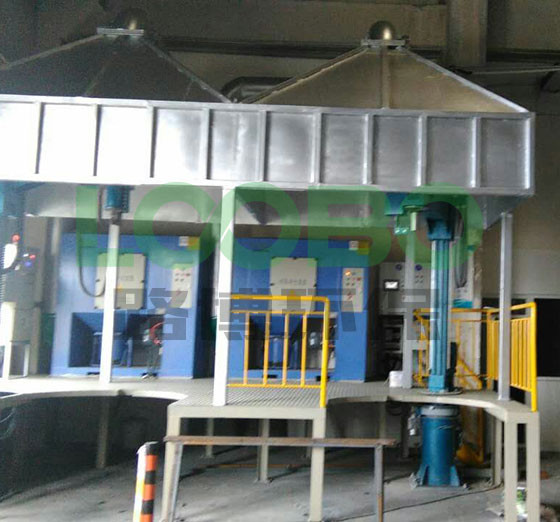

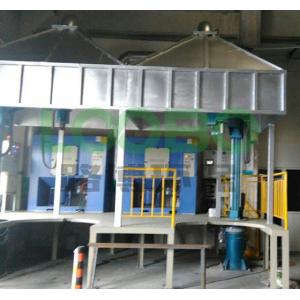

*Function characteristics:
1)Low emission concentration, can the filter the dust smaller than
0.2 um.
2)Good permeability, low gas resistance.
3)Soot is convenient, automatic dust clean; Ensure the continuity
of production and efficiency.
4)Dust collection container is convenient to disassemble, compact
connection with filter funnel, dust does not leak.
5)Filter cylinder surface is smooth, good waterproof and oil proof
performance.
**Technical parameters:
| Model | Air Volume
m3/h | Cartidge Q’ty(pc) | Pulse valve | entrance concentration
g/m3 | Emission concentration
mg/m3 | Injection pressure
MPa | Equipment resistance
Pa | Compressor Air m3/min |
| Type | Qty
(pc) |
| LB/C-18 | 8520-11520 | 18 |
DMF
-Z-25 | 3 |
≤50 |
≤50 |
0.5-0.7 |
≤1200 | 0.064 |
| LB/C-24 | 12520-16280 | 24 | 4 | 0.096 |
| LB/C-30 | 16900-20400 | 30 | 5 | 0.128 |
| LB/C-36 | 21280-23920 | 36 | 6 | 0.128 |
| LB/C-48 | 24040-34560 | 48 | 6 | 0.192 |
| LB/C-60 | 28800-38200 | 60 | 6 | 0.256 |
| LB/C-64 | 39720-43080 | 64 | 8 | 0.192 |
| LB/C-70 | 43560-47840 | 70 | 7 | 0.288 |
| LB/C-80 | 46400-50600 | 80 | 8 | 0.384 |
| LB/C-90 | 53080-60120 | 90 | 9 | 0.384 |
| LB/C-108 | 65760-70640 | 108 | 9 | 0.512 |
Application field :
machinery ,pyrogenation, metallurgy , building materials,
automobile making, shipbuilding,
chemicals, food,fire-resist, mining machinery ,
pesticide,electronic field to collect the non-fabric industrial
dust.
Facility principle:
Dust-laden air goes into dust collector from the top or the side
import, the dust is "closured" by cartridge appearance and gathers
together. The purified air is discharged out from the cartridge
center, which achieve the purification purpose. In order to clean
the cartridge, making use of compressed air (0.6-0.7Mpa) to produce
a strong air current, which release into the cartridge center
through the electromagnetic valve, and oscillate and blow down the
dust accumulated on the external surface of cartridge as the
vibration waves. The dust fall down in the ash bucket in the
following. In order to ensure the cartridge works normally and
continuously, dynamic change dust, the PLC control system blow
conversely.
Features:
• small volume, small footprint, saving space;
• high efficiency of cleaning; Purification rate is more than 99%
on the particles bigger than sub-micron.
• using imported cartridge of the United States as main part with a
long service life;
• reasonable structure, easy for maintenance, low-cost; convenient
for cartridge replacement without any tools;
• Energy-saving, running resistance is 500-800pa, initial
resistance is 200pa,and the maximum resistance is 1500pa.(
according to the air pressure of fan)
• inported PLC control adjustable pulse blowing conversely,
equipped with import pressure indicator;
• Series horizontal cartridge, a single seal to ensure the safety
of equipment operation and easy for maintenance;
• flexible box composite element can be installed to meet different
site conditions;
• a variety of cartridge material can be choiced for users,
including high temperature resistant, anti-moisture, flame
retardant and so on.
1. LB-PC Cartridge dust collector
| Model | Airflow(m³/h) | Filter qty | Valve type | Body size(mm) |
| L | H | W | dia |
| LB-PC-12 | 12000-15000 | 12 | DMF-T-40 | 1960 | 2770 | 1362 | 550 |
| LB-PC-16 | 16000-20000 | 16 | DMF-T-40 | 1960 | 2770 | 1960 | 650 |
| LB-PC-20 | 21000-25000 | 20 | DMF-T-40 | 1960 | 2770 | 1960 | 700 |
| LB-PC-24 | 24000-30000 | 24 | DMF-T-40 | 3920 | 2770 | 1362 | 750 |
| LB-PC-32 | 32000-40000 | 32 | DMF-T-40 | 3920 | 2770 | 1960 | 850 |
| LB-PC-40 | 41000-48000 | 40 | DMF-T-40 | 3920 | 2770 | 1960 | 900 |
| LB-PC-48 | 50000-57000 | 48 | DMF-T-40 | 5880 | 2770 | 1960 | 1000 |
| LB-PC-60 | 60000-70000 | 60 | DMF-T-40 | 5880 | 2770 | 1960 | 1200 |
LB-CY the compact all in one type cartridge filters :
| Model | Airflow
M3/H | Power
KW | Cartridge Q’ty | Valve Q’ty | Weight | Size
mm |
| LB-CY-4 | 2200-3000 | 3.0 | 4 | 4 | 456 | 1440*1808*1050 |
| LB-CY-6 | 3500-4500 | 5.5 | 6 | 6 | 592 | 1800*1808*1050 |
| LB-CY-8 | 4800-6500 | 5.5 | 8 | 8 | 672 | 2210*1928*1050 |
| LB-CY-12 | 7500-8600 | 7.5 | 12 | 4 | 1105 | 2250*2077*1400 |
| LB-CY-15 | 8900-9750 | 11 | 15 | 5 | 1301 | 2950*2077*1400 |
We,Qingdao Loobo Environmental Protection Technology Co.,Ltd is
aimed to air purifying and kinds of removing fume exhausted, with
its own R&D team more than ten years manufacturer, located in
Qingdao city of china, specialized in the main products:
1,portable fume extractor,
2.downdraft benches(grinding dust removal worktable),
3.central fume purification projects,
4.Spare parts:flexible suction arm,etc.
All of our products with the ISO9001, and CE certification for
parts of products, the quality can be guaranteed.
